X-Jet M5-20K Adjustable Downstream Chemical Injector Nozzle - 8 GPM
X-Jet M5-20K Adjustable Downstream Chemical Injector Nozzle - 8 GPM
The XJETM5-20K nozzle allows you to keep chemicals out of your power washer while easily controlling the spray angle with a twist. Specifically designed for power washers operating at rates...
-
Product details
The XJETM5-20K nozzle allows you to keep chemicals out of your power washer while easily controlling the spray angle with a twist. Specifically designed for power washers operating at rates over 8 GPM, this user-friendly nozzle attaches to both your spray wand and its own dedicated X-Jet suction hose. As water flows through the X-Jet nozzle, it draws and mixes chemicals from a separate tank, all within the nozzle. Adjust the spray pattern from 5° to 60° with a simple twist, eliminating the need for multiple tips.
Dimensions:
- Length: 5.38"
- Width: 1.25"
- Height: 2.38"

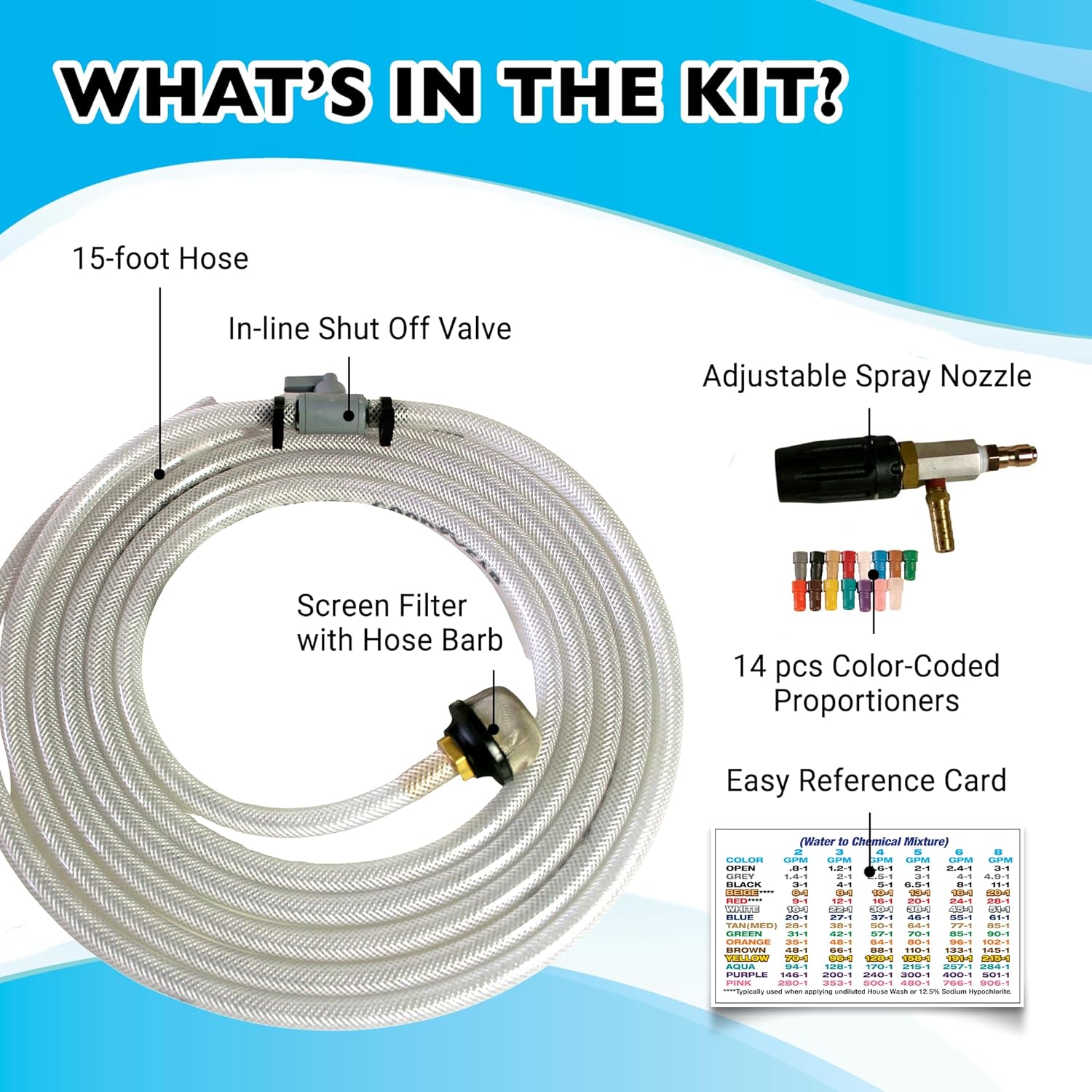

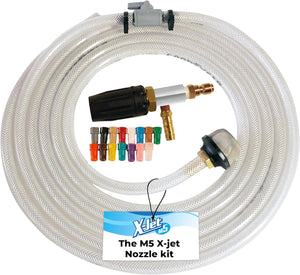

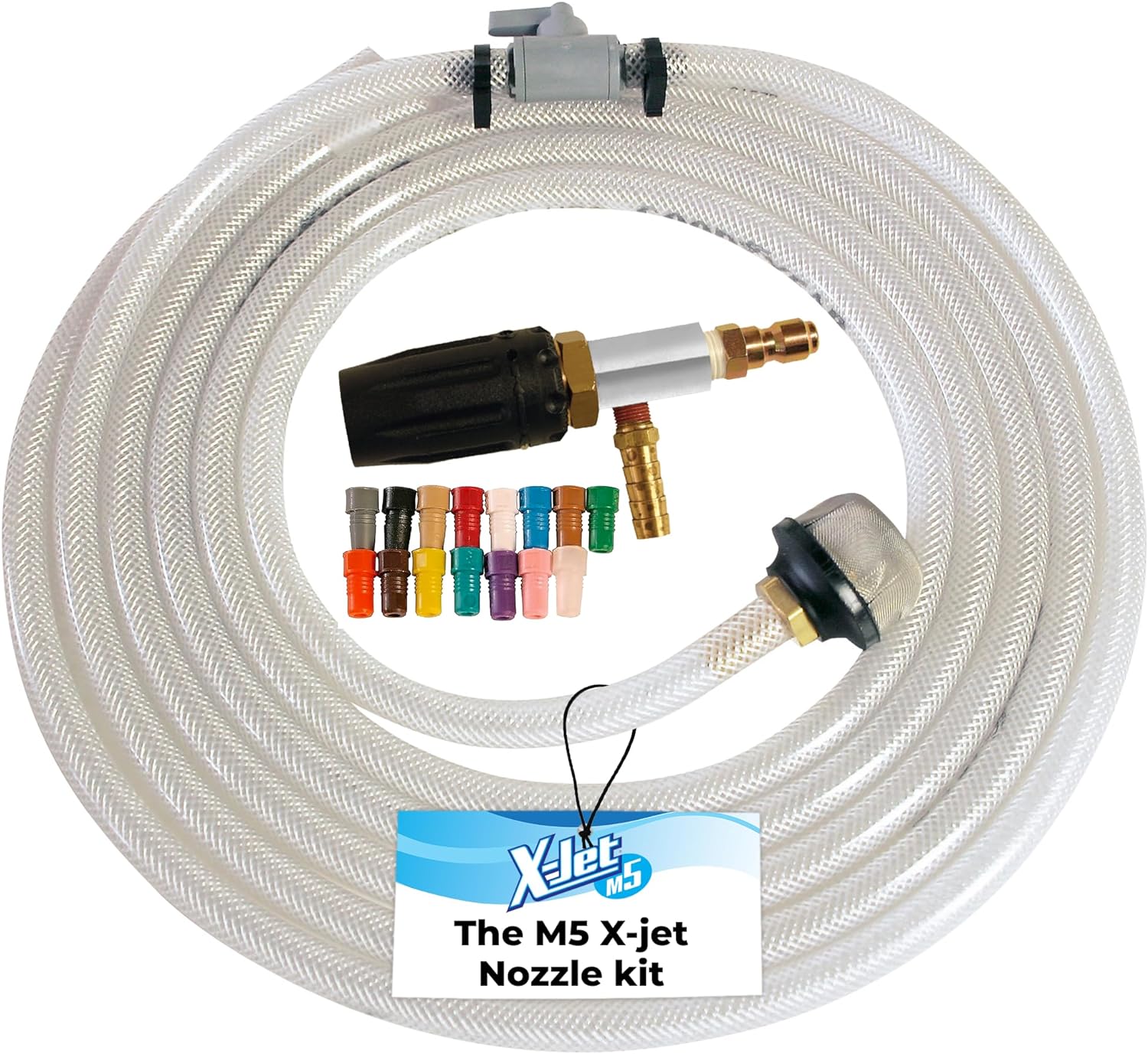

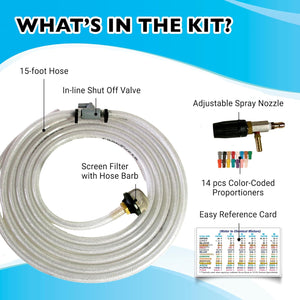

Includes:
- 15-foot X-Jet Suction Hose with hose barb
- Twist-adjust M5 nozzle for adjustable spray patterns between 5° and 60°
- Quick connect plug
- 15-piece color-coded proportioner tip set
- Shut-off ball valve
- Mushroom strainer
-
Product technology
Additional Specifications:
- Maximum pressure: 4000 PSI (optimal range: 2500-4000 PSI)
- 8 GPM maximum flow rate (optimal flow rate: 7-8 GPM)
- Fully adjustable spray patterns
- Projects chemicals up to 40 feet, depending on the pressure washer
- Maximum temperature: 190°F
- Inlet: 1/4" quick connect plug
- Chemical port: 1/8" MPT x 3/8" hose barb
- Weight: 4 lbs
The XJETM5-20K nozzle is perfect for applying soap and rinsing, ideal for residential pressure washing tasks like cleaning houses. Simply remove the chemical suction tube to switch from soaping to rinsing.
